NDIR Sensor
Module
high performance NDIR
Gas Sensor Module CFIR,MCIR is a high-performance gas sensor module for
selective detection that is more precise than a typical sensor,
using a non-dispersive infrequent abuse (NDIR) method.
Gas Sensor Module CFIR,MCIR is a high-performance gas sensor module for
selective detection that is more precise than a typical sensor,
using a non-dispersive infrequent abuse (NDIR) method.
CFIR
4CH Gas Sensor
High-performance NDIR Gas Sensor Platform (4CH)

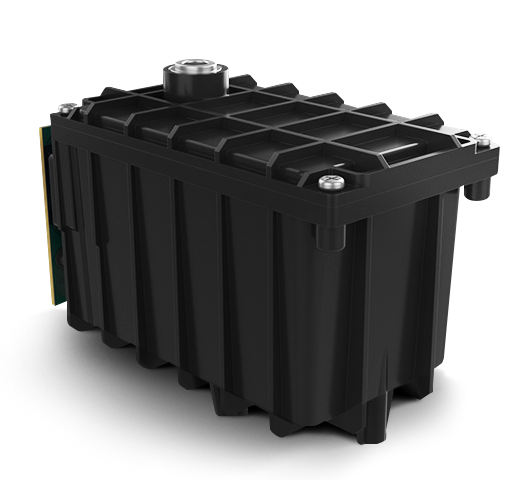

CFIR is a high-performance Gas NDIR Sensor Platform thatconsists of 4CH, can fit 4 kinds of NDIR Filters,
and is suitable for up to 4 gas measurements.
CFIR (2CH)
| Model | Spec | |
|---|---|---|
| CFIR | Dimension | 50 mm X 60mm X 90 mm |
| Intput Voltage | DC 24-50V | |
| Resolution | ≥ 1ppm | |
| Interface & Sensor Output | SPI Protocol | |
| Response Time T90 | ≤ 60 seconds | |
| Warm Up Time | <20 Minutes | |
| Operating Temperature | 15°C to +35°C (32°F to 104°F) | |
| IR beam path | about 1m | |
| Humidity | 15 - 90% RH | |
| Life Time | 5 years or longer | |
| Warranty | 2 years | |
| Storage Temperature | +5°C to +25°C (+41°F to +77°F) | |
| Target Gas | COS, C4F6,NF3 |
MCIR 4CH,
8CH Gas Sensor
High-performance NDIR Gas Sensor Platform (8CH)

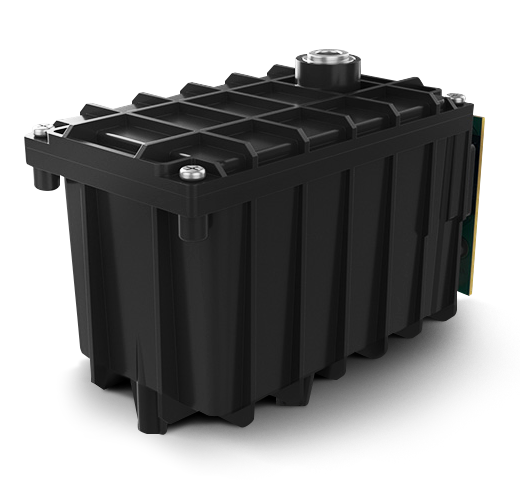

MCIR is a high-performance Gas NDIR Sensor Platform that consists of8CH, can fit 8 kinds of NDIR Filters,
and is suitable for up 8 gas measurements.
MCIR
| Model | Spec | |
|---|---|---|
| MCIR | Dimension | 50 mm X 60mm X 90 mm |
| Intput Voltage | DC 24-50V | |
| Resolution | ≥ 1ppm | |
| Interface & Sensor Output | SPI Protocol | |
| Response Time T90 | ≤ 60 seconds | |
| Warm Up Time | <20 Minutes | |
| Operating Temperature | 15°C to +35°C (32°F to 104°F) | |
| IR beam path | about 1m | |
| Humidity | 15 - 90% RH | |
| Life Time | 5 years or longer | |
| Warranty | 2 years | |
| Storage Temperature | +5°C to +25°C (+41°F to +77°F) | |
| Target Gas | C4F6, CH2F2,CH3F, COS, IPA, FC-3283, R-134a |
SCIR
2,4CH Gas Sensor
High-performance NDIR Gas Sensor Platform (2,4CH)
SCIR is a high-performance transverse Gas NDIR Sensor Platformthat consists of 2CH and 4CH, can fit 4 kinds of NDIR filters,
and is suitable for up to 4 gas measurements.

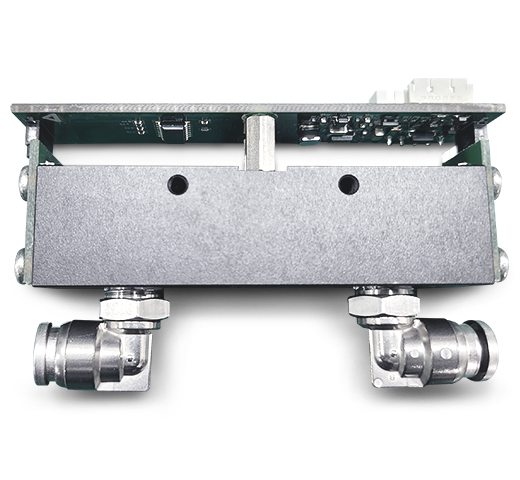

SCIR (Straight Type IR Sensor)
| Model | Spec | |
|---|---|---|
| Straight Type IR Sensor | Dimension | 2CH : 56 X 88 X 25 / 4CH : 82 X 123 X 23 |
| Intput Voltage | DC 24-50V | |
| Resolution | ≥ 1ppm | |
| Interface & Sensor Output | UART Protocol | |
| Response Time T90 | ≤ 30 seconds | |
| Warm Up Time | <20 Minutes | |
| Operating Temperature | 15°C to +35°C (32°F to 104°F) | |
| IR beam path | 2CH : 53mm / 4CH : 88mm | |
| Humidity | 15 - 90% RH | |
| Life Time | 5 years or longer | |
| Warranty | 2 years | |
| Storage Temperature | +5°C to +25°C (+41°F to +77°F) | |
| Target Gas | N2O, SF6, NF3, FC-3283, CF4 |
RIR
2CH Gas Sensor
High-performance NDIR Gas Sensor Platform (2CH)
RIR is a high-performance circular Gas NDIR Sensor Platformthat consists of 2CH, can fit 2 kinds of NDIR filters,
and is suitable for up to 2 gas measurements.

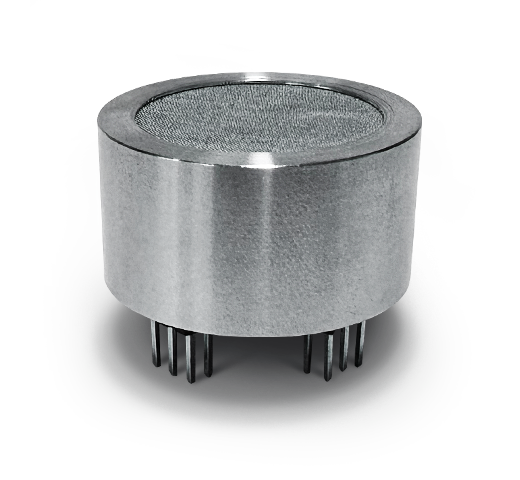

RIR (Circle Type IR Sensor)
| Model | Spec | |
|---|---|---|
| Circle Type IR Sensor | Dimension | 31.5Ø X 17 (Pin : 22) |
| Intput Voltage | DC 24-50V | |
| Resolution | ≥ 1ppm | |
| Interface & Sensor Output | UART Protocol | |
| Response Time T90 | ≤ 30 seconds | |
| Warm Up Time | <20 Minutes | |
| Operating Temperature | 15°C to +35°C (32°F to 104°F) | |
| IR beam path | 65mm | |
| Humidity | 15 - 90% RH | |
| Life Time | 5 years or longer | |
| Warranty | 2 years | |
| Storage Temperature | +5°C to +25°C (+41°F to +77°F) | |
| Target Gas | FC-3283 |
- NDIR Sensor Module Key Features
-
Fast and accurate Gas Sensing Ability
- By Analyzing the wavelength of the light path from inside of the sensor, It can be read within 60seconds for target gas. (T < S is different per each target gas.)
-
Measurement sensitivity in low concentration ppm
- It can be read a low concentration gas where is the human can not to be aware of it under circumstance that can be happened a huge accident with small amount of gas.
